品牌: cepai
Types Of: Gate Valves
Support Customization: Oem
Place Of Origin: China
Medium Temperature: Normal Temperature
Power: Electric, Manual
Flow Medium: Oil, Water, Gas
Structure: Control
| 销售单位 | : | Piece/Pieces |
| 程序包类型 | : | 盒子 |
The file is encrypted. Please fill in the following information to continue accessing it
1。测试标准：API 598。
2。测试培养基：水或气体。
。主要技术/构建功能1。阀采用OS＆y＆BB结构设计。对于高压阀，可以根据客户要求来采用自动密封结构设计，该设计可以满足各种工作条件的需求。
2。阀体的壁厚厚度可以根据用户要求定制，并且可以满足6mm工作条件的最大腐蚀性。
3。它采用双向密封设计，并且安装无需考虑流体的方向。密封的两侧都可以实现“零泄漏”。
4。阀盘和阀座的密封表面用STL合金焊接，该合金具有强烈的中等侵蚀性。
5。阀杆的包装设计具有低泄漏结构，可以满足泄漏要求低的各种特殊工作条件的需求。该阀配备了挂锁和开放/关闭位置状态指示器设备。
我们公司的主要产品包括气动控制阀， 气动阀， 电动控制阀， 氟衬里阀，灌注涡流流量计，节流装备。
|
Production Name |

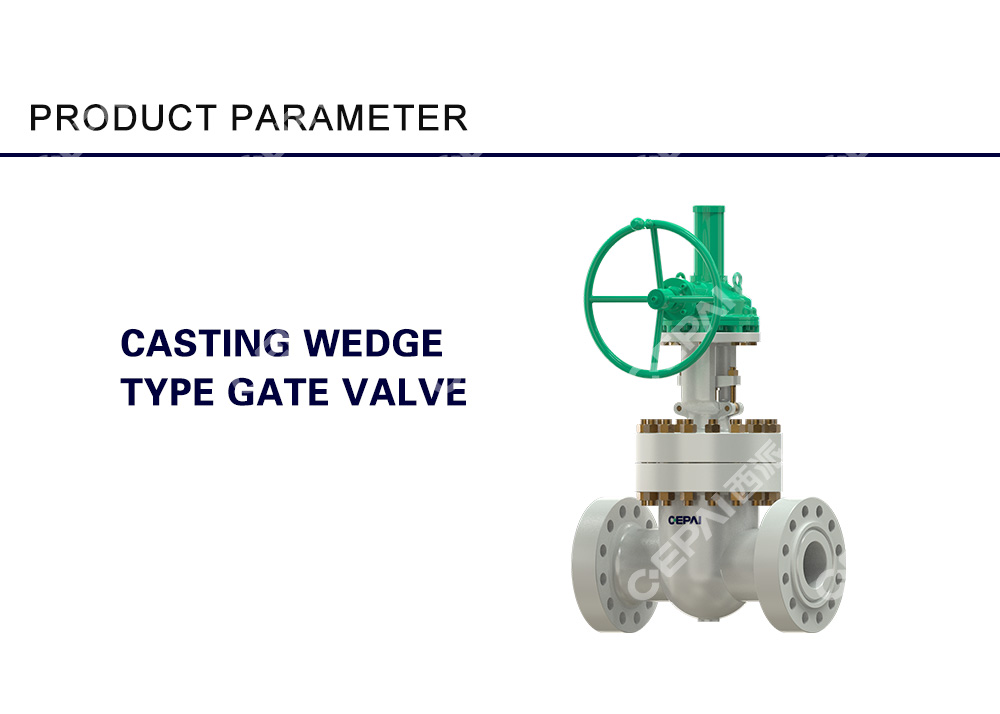

Casting Wedge Type Gate Valve |
|
Design Standard |
API 600 |
|
Rated Pressure |
150LB、300LB、600LB、900LB、1500LB、2500LB |
|
Nominal Size |
NPS2”~NPS48”（DN50~DN1200） |
|
End Connection Type |
Flange; BW,etc |
|
Operating Mode |
Handwheel, Gear box, Electric,etc |
|
Sealing Material |
Flexible Graphite, Spiral Wound Gasket |
|
Common Valve body Material |
WCB、LCB、CF3、CF8、CF3M、CF8M、WC6、C5、4A、5A、6A、CW6MC,etc |
